WebSockets

WebSockets provide a full-duplex, bidirectional communication channel over a single TCP connection. Unlike traditional request/response protocols, WebSockets allow both the client and server to send messages at any time without repeated HTTP calls. This makes them ideal for real-time applications such as live dashboards, chat systems, notifications, and other interactive features.

WaveMaker supports integrating any third-party WebSocket service into your app. Similar to REST services, you can import a WebSocket service, create a WebSocket Variable, and bind it to Components such as charts, tables, and lists to reflect real-time updates in the UI.

Importing a WebSocket Service​

WebSocket services in WaveMaker are imported by defining the WebSocket (WSS) endpoint and validating the connection to ensure the service is reachable. During this process, sample request and response payloads are provided so WaveMaker can generate accurate metadata for message structures, making it easier to bind data to UI components.

Any required query, path, or body parameters are captured as part of the service definition. Once the import is complete, the WebSocket service becomes available under Imported APIs, where its configuration, parameters, and generated metadata can be viewed and managed.

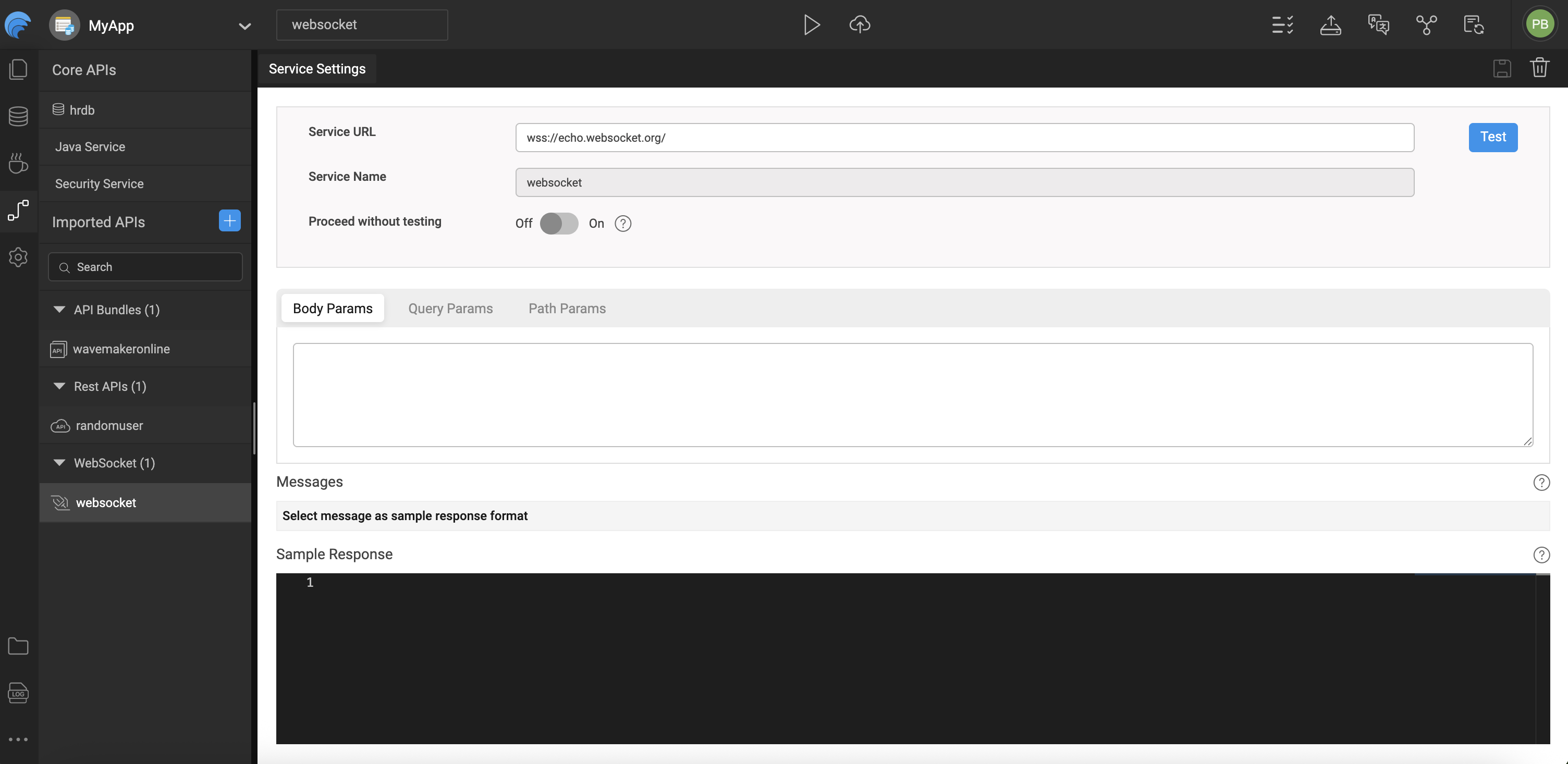

WebSocket Configuration

Handling WebSocket Data​

When your app receives data from a WebSocket service, you can choose how it should be handled in the Variable’s dataset:

As a Snapshot​

  • Refresh on new data: Always replace the dataset with the most recent message from the WebSocket service.
  • Use this option when only the latest value matters.

Append Data​

  • Add as last record: Append incoming messages to the end of the dataset.
  • Best suited for time-series or trend data, such as stock prices or sensor readings.
  • For performance and UI responsiveness, it's recommended to specify a maximum limit for the dataset size.

Prepend Data​

  • Add as first record: Insert incoming messages at the beginning of the dataset.
  • This option is useful for list views where you want the newest entries shown at the top (for example, real-time match scores or weather updates).
  • Like appending, setting a dataset limit helps maintain performance.

Limitations​

Because WaveMaker Studio runs over HTTPS, WebSocket services using the insecure ws:// protocol may not work in browsers due to security restrictions. When a ws:// URL is entered:

  • WaveMaker detects the insecure protocol and shows a warning.
  • The Test button may be disabled.
  • You can bypass the restriction by enabling Proceed without Test, but this is not recommended.
  • Best practice is to use secure wss:// endpoints to ensure compatibility and security.

Using WebSocket Services in the App​

Once the WebSocket service is imported, you must create a WebSocket Variable to interact with it:

  • The Variable serves as the bridge between your app and the WebSocket server.
  • It supports operations like opening/closing connections, sending messages, and automatically reflects incoming server messages in its dataset.
  • Data received through the WebSocket connection can be bound directly to UI components such as charts, tables, or lists for real-time display.

WebSocket Variables also include properties and event hooks that control behavior such as whether the connection opens automatically on page load or how new messages are added to the dataset.

Generated Code​

WaveMaker allows developers to import third-party APIs and automatically generate a complete backend, including Java classes, service logic, and design-time configurations. Built on proven enterprise frameworks, this approach simplifies API integration and customization.

This section describes the structure of a WaveMaker-generated service, using the Web Socket as an example.

Folder Structure​

services/
├─ authService/
├─ securityService/
├─ websocket/
│  ├─ designtime/
│  │  ├─ service-info.json
│  │  ├─ websocket_API_WEBSOCKET_SERVICE.json
│  │  ├─ websocket_apiTarget.json
│  │  └─ websocket_connection_settings.json
│  ├─ src/
│  │  ├─ servicedefs/
│  │  │  └─ websocket-service-definitions.json
│  │  ├─ service_websocket.spring.xml
│  │  └─ websocket_apiTarget.json

websocket/​

The websocket folder represents a backend service generated for WebSocket-based communication.

WaveMaker uses this service type to enable real-time, bidirectional messaging between the client and server, making it ideal for live updates, notifications, and streaming data scenarios.

Design-Time Configuration (designtime/)​

The designtime folder contains configuration files managed by WaveMaker Studio that define how the WebSocket service is configured and exposed.

Key files:

  • websocket_API_WEBSOCKET_SERVICE.json – Defines WebSocket endpoints, message mappings, and operation metadata
  • websocket_apiTarget.json – Stores target connection details such as WebSocket URLs and paths
  • websocket_connection_settings.json – Contains connection and authentication settings
  • service-info.json – Holds service metadata such as name, type, and version

⚠️ These files are platform-managed and should not be modified manually.

Runtime Configuration & Definitions​

  • servicedefs/websocket-service-definitions.json
    Defines available WebSocket operations, message payload types, and mappings used at runtime.

  • service_websocket.spring.xml
    Spring configuration file that wires the WebSocket service, ensuring proper initialization, dependency injection, and secure message handling.

Application Configuration Properties​

Whenever services are imported into WaveMaker, the platform automatically generates configuration properties that can be mapped to different environments such as Development, QA, or Production.
You can view and manage these properties in the Profiles.
For more information, refer to the Profiles section in the documentation.

For more details on environment-specific configurations, refer to the Profiles Settings section.

Click to expand configuration properties
# ---------------------------
# WebSocket Configuration
# ---------------------------
websocket.websocket.basepath=
websocket.websocket.host=echo.websocket.org
websocket.websocket.scheme=wss

Summary​

WebSockets enable real-time communication between the client and server in WaveMaker applications. By importing WebSocket services and creating corresponding Variables:

  • You can handle live data streams in your apps.
  • Choose how incoming data updates the dataset (refresh, append, prepend).
  • Configure and bind data to UI components for immediate feedback.
  • Use secure wss:// endpoints to avoid browser security issues.

WebSocket support in WaveMaker makes it easier to build responsive, real-time applications without custom networking code.
