Adaptive layout with media queries

Adaptive layout adjusts the layout and styling of a WaveMaker React Native app to the screen it runs on — from a compact phone to a large tablet. Media queries define styles for different screen widths, so a single screen definition rearranges itself, resizes text, or restyles components on a phone and a tablet without device-specific branching logic in the app.

This page covers:

• How media queries and screen widths decide which styles apply.
• How to write a media query, step by step.
• Common adaptive layout patterns.
• How to change list direction and items per row, which a media query cannot change on its own.
• How to test adaptive screens and fix common issues.

Prerequisites

• A WaveMaker React Native (mobile) project open in Studio.
• A basic understanding of CSS selectors and properties.
• A phone and a tablet for testing — real devices or simulators.

Why adaptive layout

A fixed design stretched to fit every screen wastes space on tablets and crowds content on phones. Adaptive layout gives control over how each screen looks on each class of device — for example, an iPhone and an iPad — while keeping a single page definition.

What are media queries

Media queries are conditional style rules that apply only when the device's screen matches a condition, such as a minimum or maximum width. The model is the same as in web CSS: define base styles first, then add the exceptions for other screen sizes.

The following example turns a button green on screens 768px and wider:

.button {
  background-color: blue;
}

@media (min-width: 768px) {
  .button {
    background-color: green;
  }
}

On smaller screens, the button stays blue.

Query conditions

A query accepts two conditions:

Condition	Applies the styles when the screen width is
min-width	Equal to or greater than the given value.
max-width	Equal to or less than the given value.

/* Screens 480px and wider */
@media (min-width: 480px) {
  /* ... */
}

/* Screens 479px and narrower */
@media (max-width: 479px) {
  /* ... */
}

The platform evaluates the screen width at runtime and applies the matching styles. No device-detection code is required.

Screen size reference

Use these approximate ranges as a starting point when choosing breakpoints for media queries:

Device	Screen width range
Phones	0 – 479px
Phones (landscape), small tablets	480px – 767px
Tablets	768px – 1023px
Tablets (landscape)	1024px and above

Adjust the values to suit the devices the app targets. Use the same values consistently across the app so every screen switches layout at the same widths.

Merge behavior

More than one query can match at the same time. A tablet 1024px wide matches both (min-width: 480px) and (min-width: 768px). When several queries match:

• Media query styles override base styles.
• All matching styles are merged. Only the properties inside the query block change — every other property carries over from the base class.
• Where merged styles conflict, the later rule wins. Place the rule for the widest range last.

Choosing the right approach

Media queries handle most adaptive changes, but a few are controlled by widget properties instead.

What needs to change	How to change it	Covered in
Font size, color, spacing, width, height, alignment	Media query	Write your first media query
A widget shown on one device and hidden on another	Media query with display: none	Common adaptive patterns
Panels stacked on phone, side by side on tablet	Media query on the container's flex-direction	Common adaptive patterns
List direction (vertical or horizontal)	A variable bound to the list's direction, set from the page script	Build an adaptive screen
Items per row in a list	The list's Responsive setting	Build an adaptive screen

Write your first media query

This example builds a label that shows small red text on phones and large navy text on larger screens. Media queries go in the Style tab of the app editor, alongside the normal class definitions.

Step 1: Add a class name to the widget

1. Drag a Label onto the page and select it.
2. In the Properties panel, open the Styles tab.
3. Under Additional, enter a class name in Class Name — for example, sample-text.

Step 2: Choose the right selector

Each widget renders with its own built-in classes. To style a widget, combine the custom class with the widget's class, with no space between them. A label has two styleable parts:

Selector	What it styles
.sample-text.app-label	The label's outer box — size, layout, alignment, background.
.sample-text.app-label-text	The label's text — font size, color, weight.

Other widgets follow the same pattern. For example, a container uses .your-class.app-container.

Step 3: Write the base styles

Write the base class first. Base styles apply everywhere unless a media query overrides them, so write them for the phone layout:

.sample-text.app-label {
  height: 100%;
  width: 100%;
  display: flex;
  justify-content: center;
  align-items: center;
}

.sample-text.app-label-text {
  text-align: center;
  font-size: 20px;
  color: red;
}

Step 4: Add the media query

Wrap the properties that change in a query. Everything outside the block carries over from the base class. Here, only the text size and color change on screens 480px and wider:

@media (min-width: 480px) {
  .sample-text.app-label-text {
    font-size: 80px;
    color: navy;
  }
}

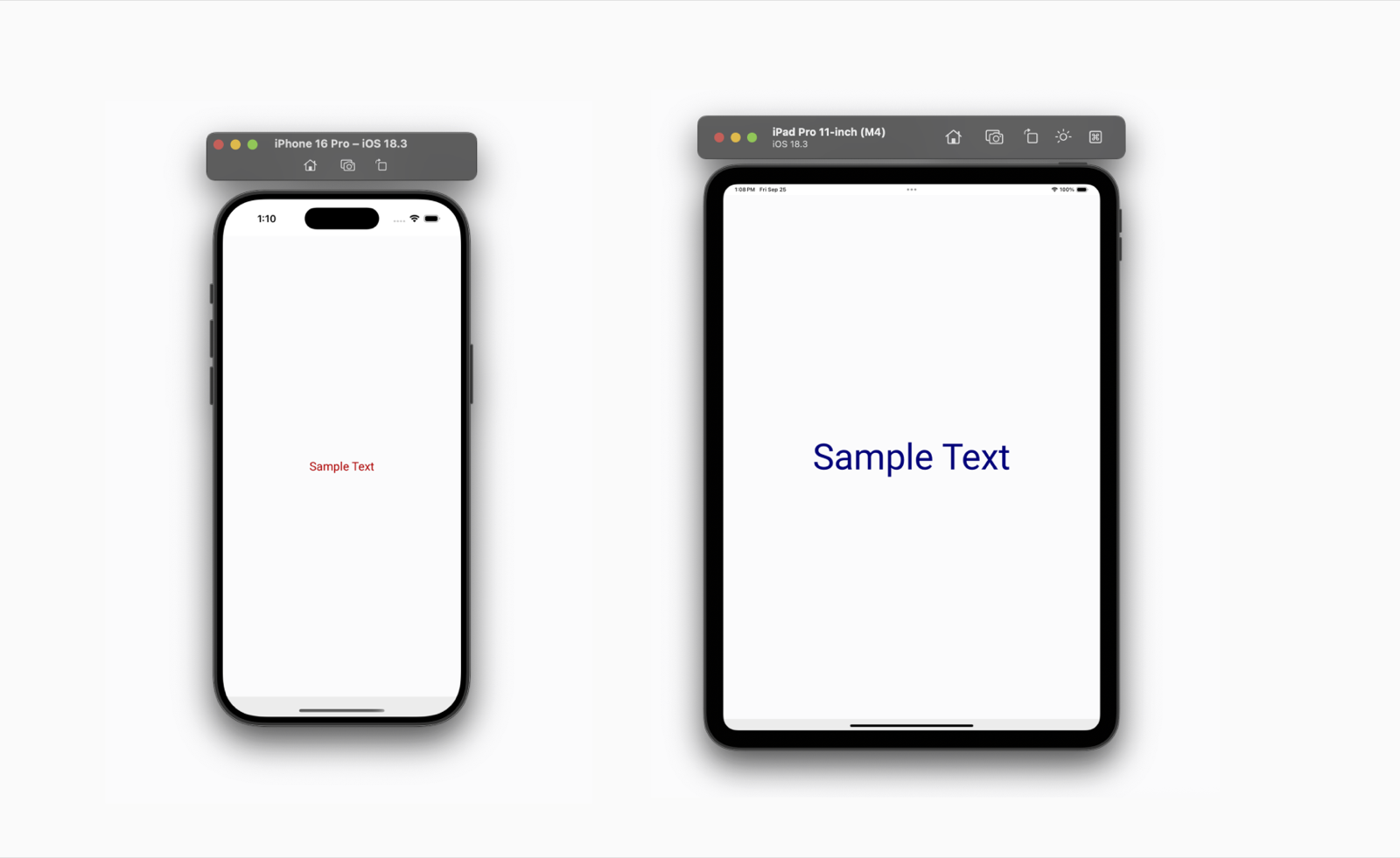

Step 5: Preview on phone and tablet

Switch the Studio preview between phone and tablet sizes, then run the app on both.

Common adaptive patterns

Each pattern follows the same approach: write base styles for the phone, then add a query for whatever changes on larger screens. The examples use 768px, the start of the tablet range in the Screen size reference.

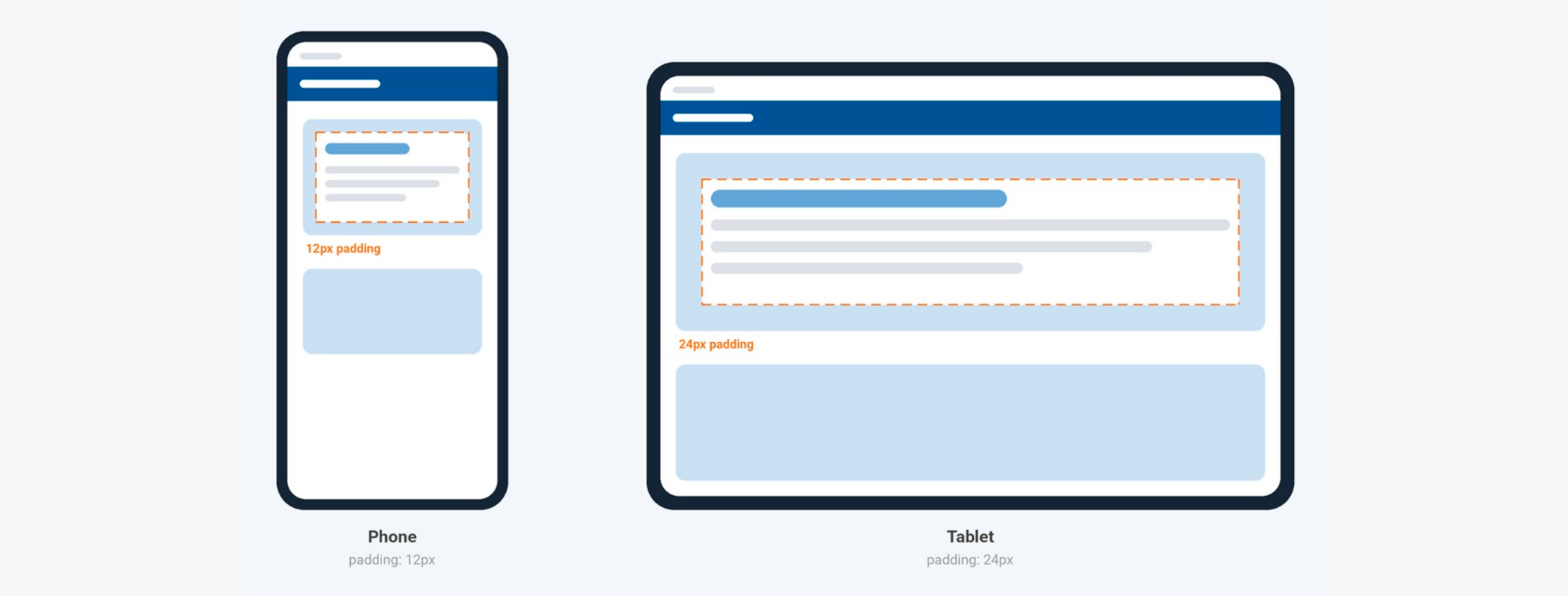

Scale text and spacing for tablets

Tablets are held at about the same distance as phones but offer much more room, so slightly larger text and more generous padding usually read better.

.card-body.app-container {
  padding: 12px;
}

@media (min-width: 768px) {
  .card-body.app-container {
    padding: 24px;
  }
}

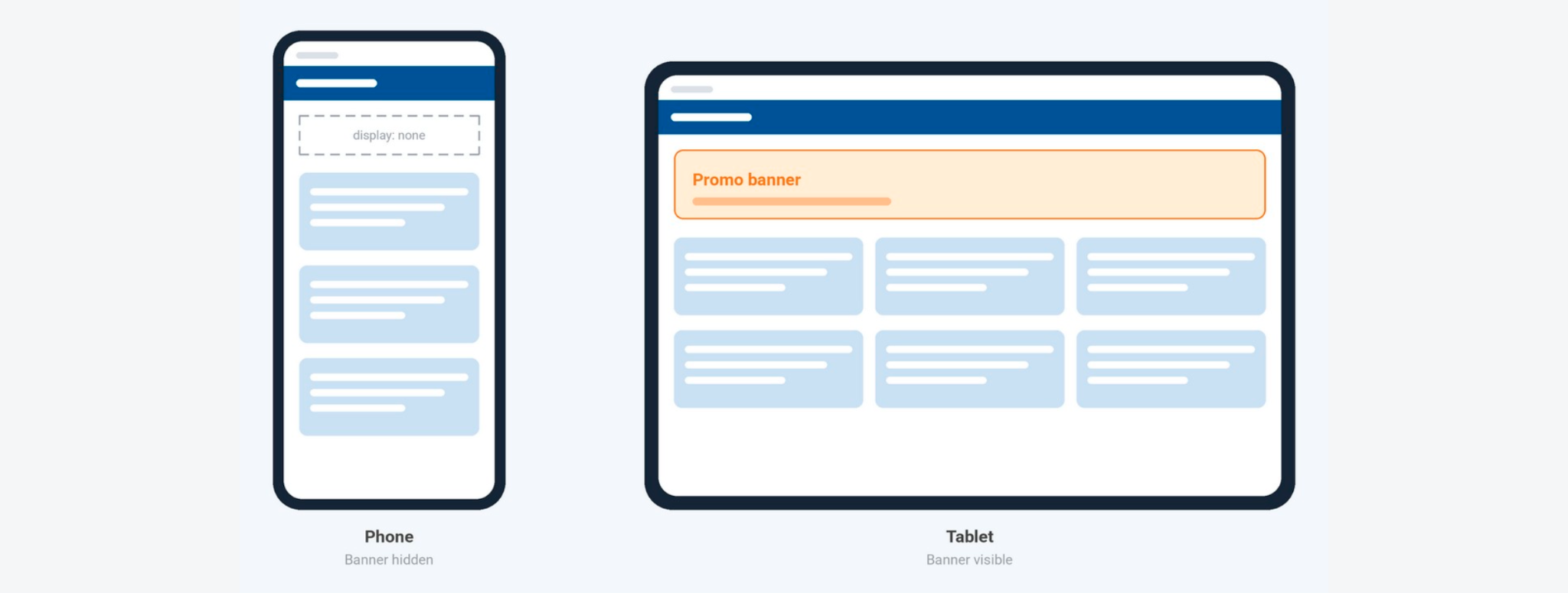

Show or hide a widget on one device

To show a widget on larger screens only, hide it in the base styles with display: none, then bring it back in a query for the width where it belongs. The same query can also change the widget's width, height, or other styles.

.promo-banner.app-container {
  display: none;
}

@media (min-width: 768px) {
  .promo-banner.app-container {
    display: flex;
  }
}

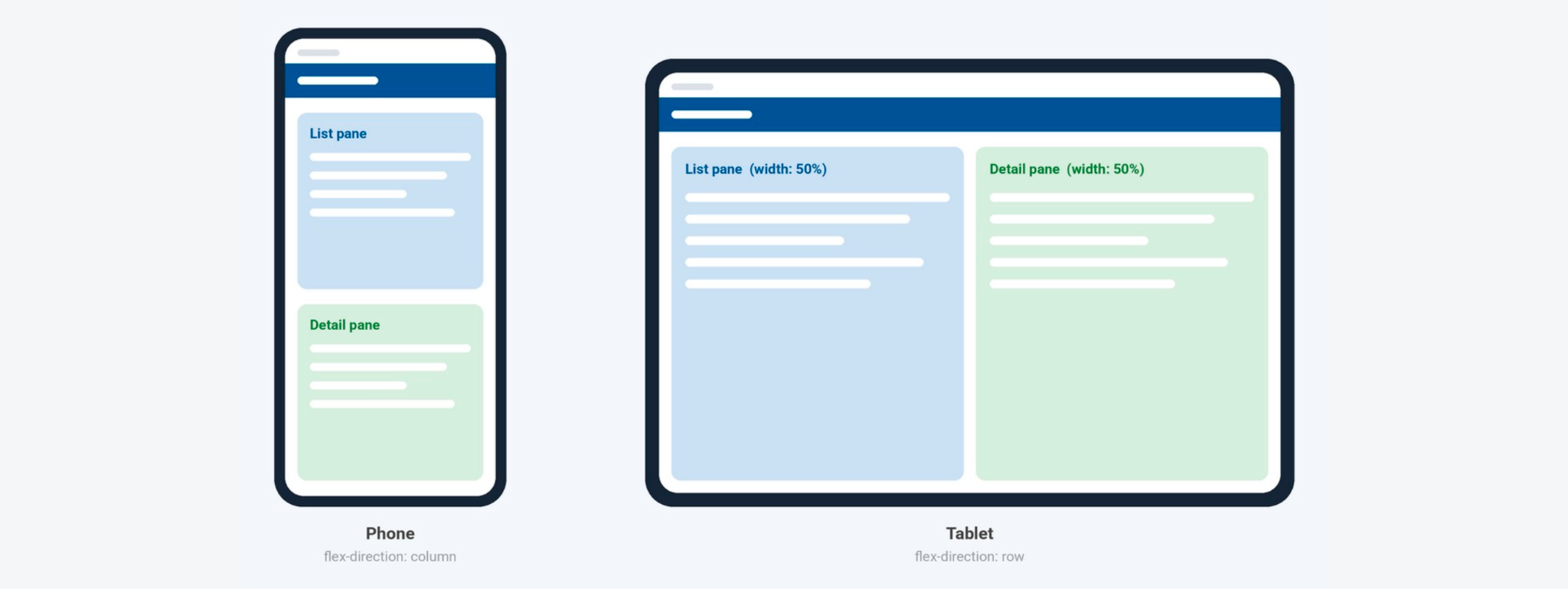

Stack on phone, side by side on tablet

A common tablet layout places two panels — for example, a list and its details — next to each other, while the phone stacks them. Give one class to the parent container and another to each panel:

/* Phone: panels stacked */
.split-view.app-container {
  flex-direction: column;
}

.split-pane.app-container {
  width: 100%;
}

/* Tablet: panels side by side */
@media (min-width: 768px) {
  .split-view.app-container {
    flex-direction: row;
  }
  .split-pane.app-container {
    width: 50%;
  }
}

tip

Set a container's direction in one place only. When a media query controls the direction, leave the container's own Direction property in Auto Layout at its default so the two do not conflict.

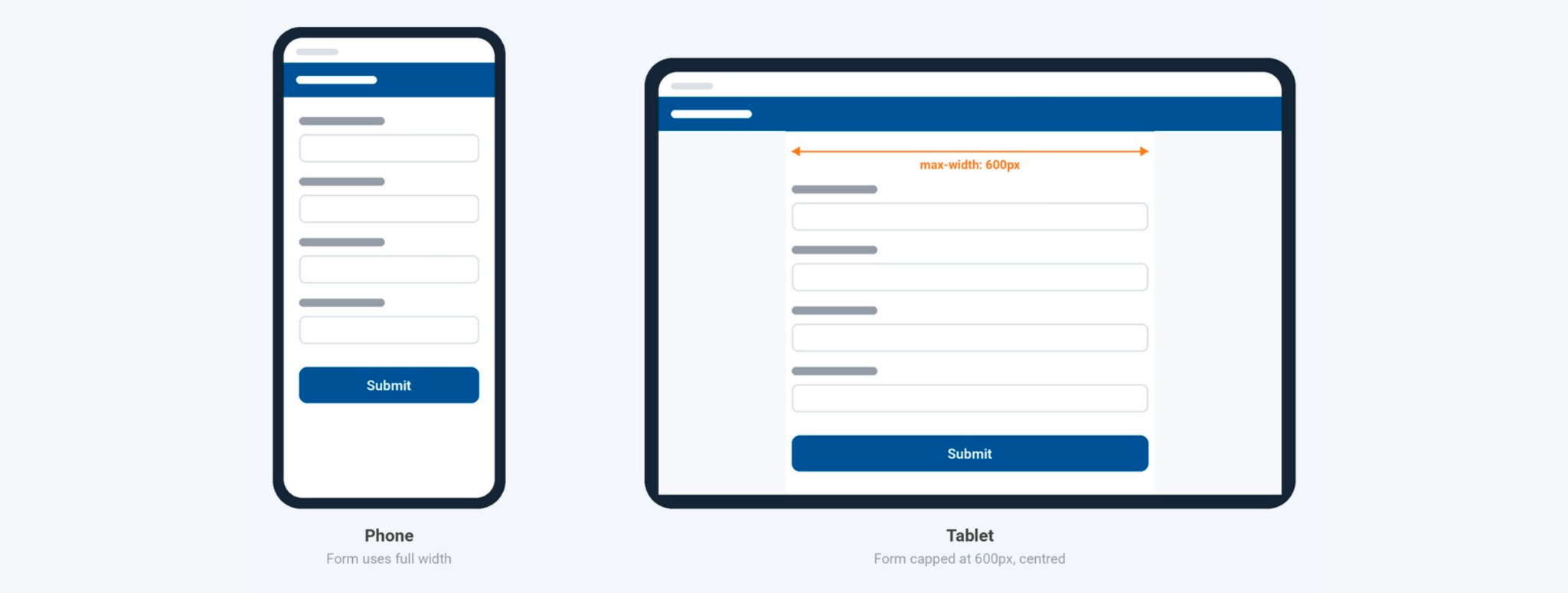

Keep content readable on wide screens

Forms and long text are hard to read when stretched across the full width of a tablet. Cap the width and center the content on tablets:

@media (min-width: 768px) {
  .form-wrapper.app-container {
    width: 100%;
    max-width: 600px;
    align-self: center;
  }
}

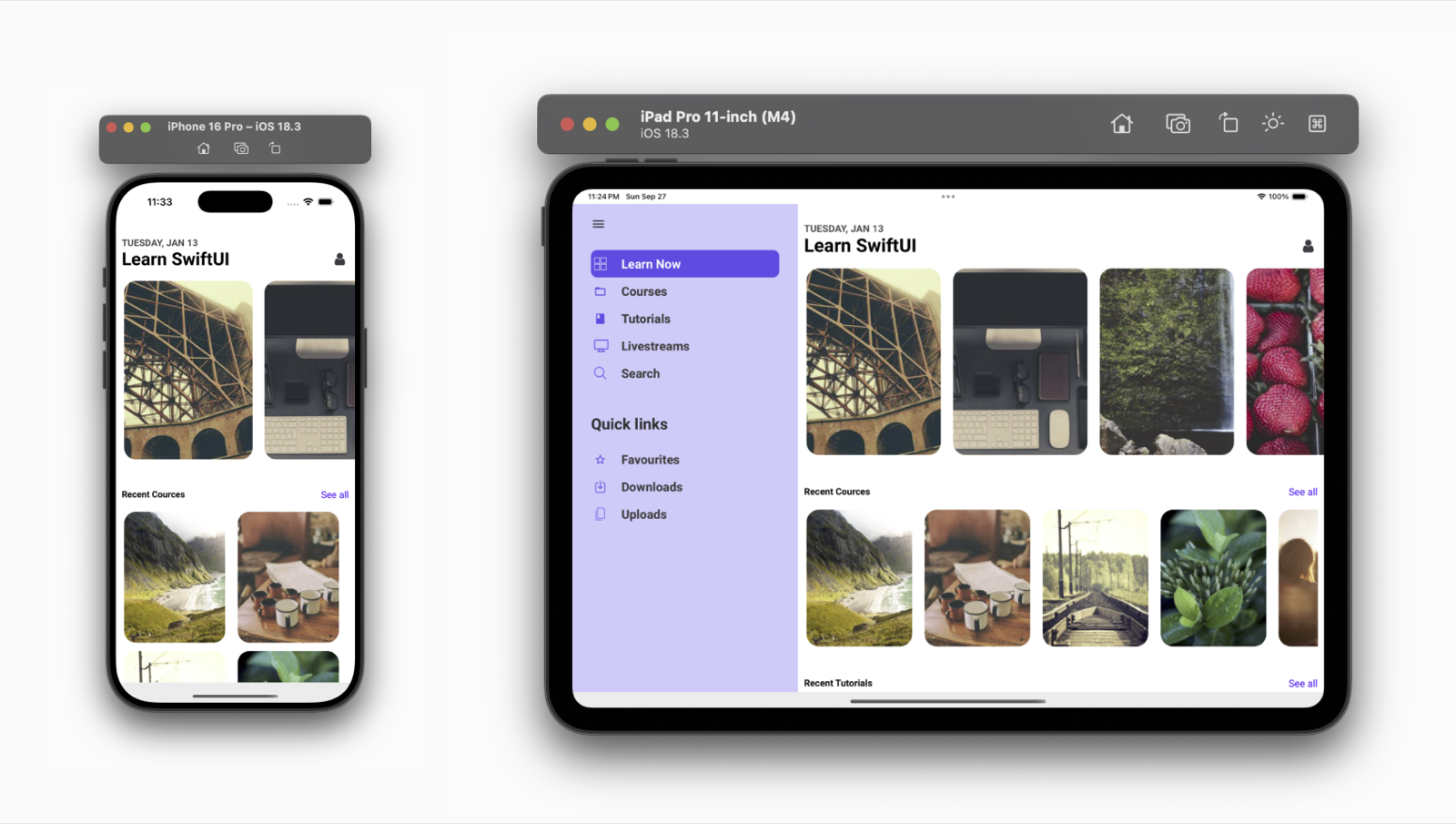

Build an adaptive screen

This section puts the patterns together in a sample screen and covers the cases a media query cannot handle on its own. The design is not a replica of any existing app — it shows what the feature can do across two device sizes.

The phone and tablet layouts differ in three ways:

Difference	Phone	Tablet	How it is built
Second list direction	Stacked vertically	Scrolls horizontally	Variable and page script
Second list items per row	2	1	Responsive setting
Left navigation	Hidden	Shown as a side panel	Media query

List direction

A list's direction is a property of the List widget, not a style, so @media cannot change it. Direction is set from Layout → Direction in the Properties panel, or from the direction attribute in the page markup.

To change the direction by device, bind it to a variable and set the variable from the page script.

Step 1: Create a variable

1. Open Variables from the top bar, click New Variable, and choose Model.
2. Set Name to listDirection and Owner to Page.
3. Set Type to String, enter column as the dataValue, and click Save & Close.

For more on model variables, see Variables and types.

Step 2: Bind the variable to the list

Point the list's direction property at the variable, either with the bind icon in the Properties panel or directly in the markup:

<wm-list name="secondaryListList1"
    dataset="bind:Variables.secondaryList.dataSet"
    itemsperrow="xs-2 sm-1 md-1 lg-1"
    direction="bind:Variables.listDirection.dataSet.dataValue">
    <wm-listtemplate layout="inline" name="listtemplate2">
        <wm-picture name="picture2"
            picturesource="bind:Variables.secondaryList.dataSet[$i].imageUrl"
            height="220px" width="170px" resizemode="cover"></wm-picture>
    </wm-listtemplate>
</wm-list>

Step 3: Update the variable from the page script

In the page Script tab, switch the direction when the screen is tablet-sized:

const { Dimensions } = require('react-native');

Page.onReady = function () {
  // ...
  if (Dimensions.get('window').width >= 768) {
    Page.Variables.listDirection.setValue('dataValue', 'row');
  }
};

Phones keep the default column direction. On tablets, the script switches it to row as soon as the page loads. For more on Page.onReady, see App and page lifecycle events.

note

• Match the width in the script to the breakpoint used by the media queries — 768 in this example. If the breakpoint changes later, update the script too.
• The check runs once, when the page loads. Unlike a media query, it does not run again when the device rotates.

Items per row

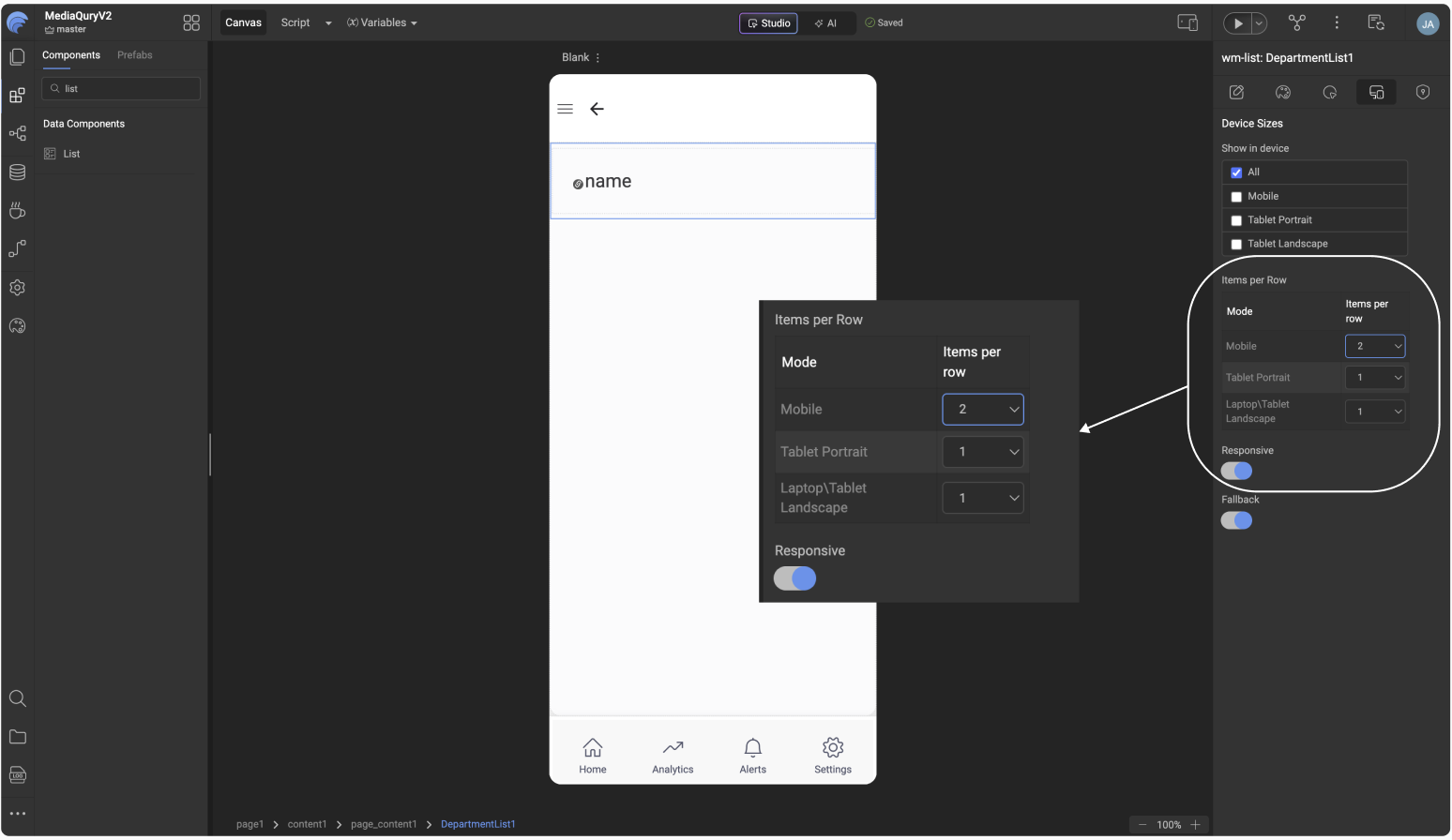

Items per row is also a widget property, so a media query cannot set it. The List widget has a responsive setting for it instead:

1. Select the list, open the Device Sizes tab, and turn on Responsive.
2. In the Items per row table, set Mobile to 2.

The list then uses the configured count for whichever device mode it runs in. In the markup, the setting appears as the itemsperrow attribute — for example, itemsperrow="xs-2 sm-1 md-1 lg-1".

Left navigation on tablet

Build the side menu inside a container widget, add the menu items as nested containers with icons and labels, and give the outer container the class left-menu.

The menu belongs on tablets only, which is what media queries are for. Hide the container in the base styles:

.left-menu.app-container {
  display: none;
}

Then show it on tablet-width screens:

@media (min-width: 768px) {
  .left-menu.app-container {
    display: block;
    height: 100%;
    width: 30%;
  }
}

Phones keep the menu hidden. Tablets show it as a side panel that takes up 30% of the screen width.

Test the finished screen

1. Preview the page in Studio at phone and tablet sizes.
2. Run it on a phone and a tablet, in both portrait and landscape.
3. Confirm that each of the three differences in the table above appears on the right devices.

Best practices

• Style the phone first. Define base styles for the phone layout and add min-width overrides on top. Smaller screens stay clean, and larger-screen styles never need to be reversed.
• Keep queries focused. Include only the properties that change, so the difference between each screen size and the base design is easy to see.
• Use a fixed set of breakpoints. Pick the widths once, based on the Screen size reference, and reuse them in every query and script so layouts stay consistent across screens.
• Name classes by purpose. Use names such as left-menu or split-view and reuse them, so one query updates every matching widget.
• Review both orientations. Rotating a device changes its width, so a different query may match. Check every screen in landscape as well as portrait.
• Test on target devices. The editor preview does not account for safe areas, system bars, and other details that affect how content fits on a real device.

Limitations

• Items per row in a list follows the matched device mode's configured value and cannot be set through a media query.
• List direction is a property of the List widget, so a media query cannot switch it between vertical and horizontal.
• Only one value wins per property, so plan overlapping ranges carefully to avoid unexpected merges.

The first two limitations have workarounds, described in Build an adaptive screen.

Troubleshooting

Problem	What to check
Styles are not applied at all	Confirm the class name is in the widget's Class Name field, and that the selector combines the custom class with the widget's class with no space — for example, .sample-text.app-label.
The query never matches	Check the condition spelling (min-width or max-width) and that the value includes the px unit.
A large phone gets the tablet layout	Its width is at or above the min-width value. Raise the breakpoint in the query.
Two rules set the same property and conflict	The later rule wins. Move the rule for the widest range to the end.
A query does not change list direction or items per row	These are widget properties, not styles. Use the variable and page script, or the list's Responsive setting.
The layout does not update after rotation	Media queries update live, but script logic in Page.onReady runs only once, when the page loads.
