Page Elements

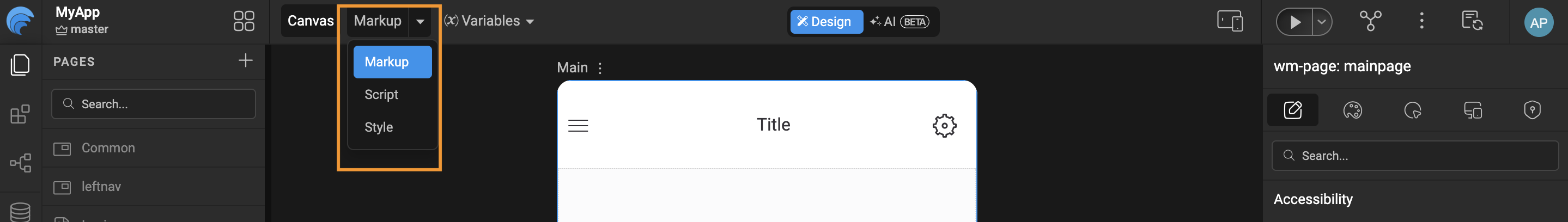

In WaveMaker, every page is designed and managed through the Canvas. On the top-left corner of the Canvas, you'll find a dropdown with three options: Markup, Script, and Style. These options represent the core building blocks of a WaveMaker page and define how a page is structured and managed.

Page Dropdown

  • Markup: The Markup view contains the UI structure of the page

    • It includes all WaveMaker components that are dragged and dropped onto the canvas (such as lists, charts, containers, forms, etc.).
    • This section defines how the page looks structurally and how components are laid out.
        <!-- Main Page Markup -->
        <wm-page name="mainpage">
            <wm-mobile-navbar name="mobile_navbar1" title="Title" backbutton="false">
                <wm-anchor caption="" name="AddLink" iconclass="wi wi-gear"></wm-anchor>
            </wm-mobile-navbar>
            <wm-content name="content1">
                <wm-left-panel content="leftnav" name="left_panel1"></wm-left-panel>
                <wm-page-content columnwidth="12" name="page_content1"></wm-page-content>
            </wm-content>
            <wm-mobile-tabbar name="mobile_tabbar1"></wm-mobile-tabbar>
        </wm-page>

  • Script: The Script view is used for page level and component level logic.

    • Any JavaScript logic written for handling events, data manipulation, validations, or custom behaviors is added here.
    • This includes lifecycle hooks, event handlers, and custom functions related to the page.
        Page.onReady = function () {
            Page.Variables.svProfileData.invoke();
            Page.Widgets.userButton.caption = "Steve Harrington";
        };

        Page.submitTap = function ($event, widget) {
            Page.Actions.goToPage_Main.invoke();
        };

  • Style: The Style view is dedicated to page level styling.

    • CSS rules specific to the page, such as layout adjustments, colors, fonts, or overrides are defined here.
    • These styles apply only to the current page and do not affect other pages in the application.
    • For mobile, styles are converted to React Native StyleSheet at build time.
        .app-button {
            background-color: #0B868D;
            color: white;
            padding: 12px 24px;
            font-size: 16px;
            border-radius: 8px;
        }

To switch between these views, simply select the required option (Markup, Script, or Style) from the dropdown on the top-left of the Canvas.

Page Level Project Structure​

For each page created in WaveMaker Studio, the platform generates a set of four related files within the project structure. These files work together to define the page's layout, behavior, styling, and configuration. Each file serves a specific purpose, enabling a clean separation of concerns and making the page easier to develop, customize, and maintain.

     src/
     └── main/
         └──── webapp/
               └─── pages/
                     └─── Main/
                          ├── Main.css
                          ├── Main.html
                          ├── Main.js
                          └── Main.variables.json
  • Main.css: Contains all the CSS styles defined in the Style tab for page-level styling.
  • Main.html: Contains all the markup defined in the Markup tab, including the UI components added to the page.
  • Main.js: Contains all the JavaScript logic written in the Script tab, including event handlers and custom functions.
  • Main.variables.json: Stores metadata related to page variables, such as service variables, model variables and configurations.

Page Overview​

In WaveMaker App, a page represents a complete UI view within an application. You can create any number of pages in an app, and each page follows a defined layout structure that ensures consistency, responsiveness and ease of development across the application.

The mobile page layout is divided into four sections: Mobile Navbar, Content (with Left Panel and Page Content), and Mobile Tabbar.

By default, WaveMaker generates a standard page markup that follows the below structure, which can be customized based on application requirements.

    <!-- Default Mobile Page Markup -->
    <wm-page name="mainpage">
        <wm-mobile-navbar name="mobile_navbar1" title="Title" backbutton="false">
            <wm-anchor caption="" name="AddLink" iconclass="wi wi-gear"></wm-anchor>
        </wm-mobile-navbar>
        <wm-content name="content1">
            <wm-left-panel content="leftnav" name="left_panel1"></wm-left-panel>
            <wm-page-content columnwidth="12" name="page_content1"></wm-page-content>
        </wm-content>
        <wm-mobile-tabbar name="mobile_tabbar1"></wm-mobile-tabbar>
    </wm-page>

Mobile Navbar​

The Mobile Navbar appears at the top of the page and provides navigation and contextual actions. In a web project, the comparable pattern is a header partial; mobile projects use the navbar instead.

It commonly contains:

  • Page title
  • Back button for navigation
  • Action anchors (settings, search, notifications)

The navbar also controls the drawer button for toggling the left panel.

    <wm-mobile-navbar name="mobile_navbar1" title="Title" backbutton="false">
        <wm-anchor caption="" name="AddLink" iconclass="wi wi-gear"></wm-anchor>
    </wm-mobile-navbar>

Left Panel​

The Left Panel serves as a navigation drawer that slides in from the side. It provides users with quick access to important sections without interrupting the main content area.

Typical use cases include:

  • Navigation menus: Used to render primary or secondary navigation structures, enabling routing between pages or application sections.

  • Contextual tools and actions: Filters, action buttons, shortcuts, or utilities relevant to the current page.

        <!-- Left Panel Partial Markup -->
        <wm-partial name="leftnav" type="left-panel">
            <wm-nav type="pills" layout="stacked" name="nav1">
                <wm-nav-item name="nav_item1">
                    <wm-anchor caption="Dashboard" iconclass="wi wi-bar-graph" name="anchor1"
                        on-tap="Actions.goToPage_Main.invoke()"></wm-anchor>
                </wm-nav-item>
                <wm-nav-item name="nav_item2">
                    <wm-anchor caption="Pending Orders" iconclass="wi wi-file" name="anchor2"
                        on-tap="Actions.goToPage_Orders.invoke()"></wm-anchor>
                </wm-nav-item>
            </wm-nav>
        </wm-partial>

Content​

The Content section forms the main body of the page where most user interactions occur. For mobile, the content area contains the Page Content section.

Page Content​

The Page Content area is the primary workspace of the page. It contains the core UI components and business functionality, such as:

  • Layouts and UI Components
  • Charts and dashboards
  • Forms and lists

This area dynamically updates based on user interactions and data bindings and usually occupies the majority of the available screen space.

Mobile Tabbar​

The Mobile Tabbar is located at the bottom of the page and provides tab-based navigation between primary sections of the application. In a web project, the comparable pattern is a footer partial; mobile projects use the tabbar instead.

    <wm-mobile-tabbar name="mobile_tabbar1"></wm-mobile-tabbar>

The tabbar items are configured through the application's navigation settings in Studio.

Page Operations​

You can duplicate, rename and delete a page using the page operations. These can be accessed from the more options against a given page.

  • Renaming a page or a partial page leads to the page name being renamed, with the new name given by you. All the references are also renamed.
  • Duplicating a page leads to a copy of the page or partial page being created, with the new name given by you. A new goTo action for that page is also created.
  • Deleting a page removes all references to the selected page from the project.

Page Name Validations​

When creating a page, the following naming conventions should to be followed.

  • The page name should contain at least one character, and it cannot be a number.
  • The page name cannot contain special characters.
  • The page name cannot start with a number.

Home Page Configuration​

Every WaveMaker application has a Home Page. This allows flexible control over the app's entry point without changing navigation logic.

  • The page named Main is set as the homepage by default.
  • You can customize the default homepage from App Settings, Select the desired page from the Homepage dropdown.

Create a Page in WaveMaker

Watch for a step-by-step guide on creating and managing pages in WaveMaker Studio.
